THE 3D imaging solution

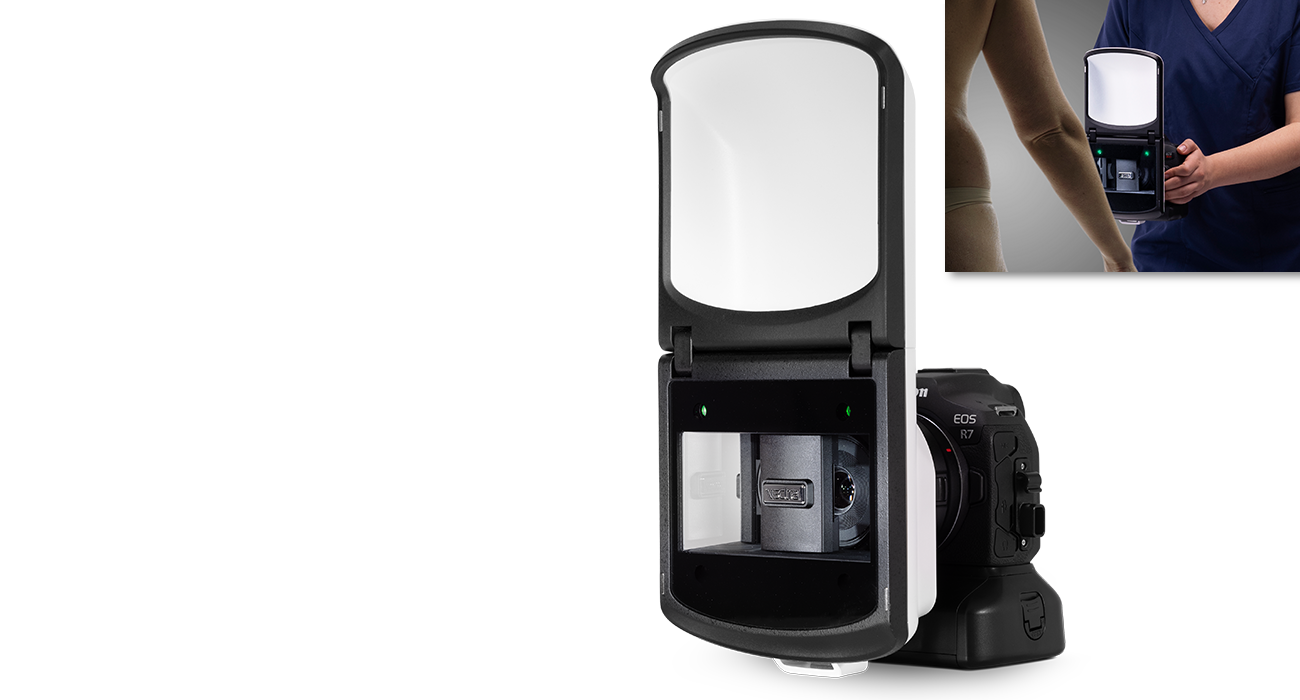

The all-in-one hand-held VECTRA H2Body delivers photographic quality 3D images with unrivaled assessment and consultation software.

  • Innovative Flash
  • Ranging Lights
  • Precision Optics
  • Seamless Wi-Fi capture into patient chart
  • Also runs natively on macOS®
VECTRA® H2 Body

Assess, Educate & Simulate Outcomes


Breast Sculptor
  • assessment
  • automated measurements
  • patient education
  • augmentation
  • mastopexy
  • revision
  • fat grafting

Body Sculptor
  • tummy tuck
  • liposuction
  • buttock augmentation
  • cellulite treatment
  • measure volume change

A patient viewing the plastic surgery outcome via Canfields ViewMyConsult

ViewMyConsult® web portal helps you stay connected to your patients as they consider the possibilities of aesthetic procedures. By accessing a secure, password-protected web portal, patients can view their 3D pictures in the privacy of their own home. Your patient can take it all home with ViewMyConsult and personalized printed reports.

IntelliStage

Optional IntelliStage® allows for fast and easy 360° capture

go to IntelliStage page

Custom cases for VECTRA H2 and flashes

Custom case included. VECTRA H2Body flash folds for transport.

Tech Specs & Requirements

Capture system specifications
  • Capture Volume
    • Body capture: 700mm (H) x 410mm (W) x 400mm (D)
  • 2.0 milliseconds capture time
  • Stereophotogrammetry technology
  • 3D Resolution (triangle edge length)
    • Body capture: 3.5mm
  • Multiple image stitching capability
  • On-board modular, intelligent flash unit
  • Dual Ranging lights for easy patient positioning
  • SD Memory Card
  • (4) Batteries and (2) chargers
  • USB Cable
  • Soft carrying case
  • Computer (optional)
  • Printer (optional)
Software
  • VECTRA Capture Module
  • VECTRA Analysis Module
  • Mirror® PhotoFile®
  • Mirror® PhotoTools
  • Breast Sculptor® (optional)
  • Body Sculptor® (optional)
System Power
  • 100-120V AC, 50/60 Hz, 15va or
  • 220-240V AC, 50/60 Hz, 20va
Windows computer requirements
  • Operating system:
    • Windows 10 Professional 64 bit (Recommended) or Windows 11 Professional 64 bit
    • NOT SUPPORTED: Windows Home Edition and Windows 7
  • Processor: Intel Core i7 10th Gen (or higher)
  • System memory (RAM): 16 GB or higher
  • Minimum 1 GB available disk space for installing application
  • 1 TB available disk space recommended for data
  • Graphics card:
    • 2 GB dedicated memory minimum (4 GB or higher Recommended)
    • Dedicated nVidia or AMD cards (nVidia Highly Recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • USB Ports: 2 dedicated ports (USB 2.0)
  • Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum
  • Microsoft Security Essentials anti-virus software recommended
  • Wired printers (recommended for speed)
  • 1 Gbps Ethernet connection for networking - remote DB access not supported over Wi-Fi
Windows server requirements
  • Windows Server 2016 64-bit and 2019 64-bit
  • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.
  • RAID 1 - NOT SUPPORTED
  • Regularly scheduled backups are highly recommended
Mac computer requirements
  • Mac hardware: 2019 or newer
  • Operating system: macOS Sonoma and Sequoia
  • Processor: Apple M1 (or higher) or Intel Core i7 10th Gen or higher
  • System memory (RAM): 16 GB (or higher)
  • Minimum 2 GB available disk space for installing application
  • Minimum 500 GB available disk space recommended for data (1TB or higher recommended for capturing to local database)
  • Graphics card: M1, or Intel Graphics (AMD dedicated graphics recommended for Intel Processor models)
  • USB Ports: 1 USB-C port required
  • Display: 13-inches or larger with resolution of 1920 x 1080 or greater
  • Optional: 1 Gbps wired LAN connectivity connectivity (remote DB access not supported over Wi-Fi)
  • Optional: SD Card reader for SD Card capture mode
Mac server requirements
  • Windows or Mac based server that meets Minimum Computer Recommendation
  • macOS:
    • MySQL version 8.0.33
  • Windows OS:
    • Windows Server 2016 64-bit and 2019 64-bit
    • Microsoft SQL Server 2019 (Express edition is installed by default)
  • 1 Gbps wired LAN connectivity (Remote Database access over Wi-Fi not supported)
  • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.
  • RAID 1 - NOT SUPPORTED
  • Regularly scheduled backups are highly recommended
Mirror iPad® app - Purchased Separately
  • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
  • Requires iPad capable of running the current version of iOS
  • Mirror desktop software running on Windows OS is required to support Mirror iPad app database
Notes
  • We do not support using a server class OS as a workstation.
  • WAN connectivity is NOT supported. 1Gbps connection required.
  • A minimum of 1 Gbps network speed is required to access the storage location of the live copy of the data (10 Gbps recommended). Wi-Fi is not supported for workstation connectivity
  • Maximum 25ms latency required to the storage location of the live copy of the data
  • Anti-virus exceptions must be put in place to avoid any latency
  • Server class OS not supported as a workstation
  • SSD Storage is highly recommended
  • Cloud storage (Azure, AWS, Google Cloud, Etc.) is not supported for storing data, but can be used for backup purposes
  • RAID 1 is not supported
  • The Machines/PC/Server where the Canfield services are running must have a static IP address
  • In a networked environment, the services(s) need to run with a dedicated service account where the password does not expire, and it has access to the DB and the images folder

Canfield Care® Support & Training

Canfield Care includes:
  • Unlimited expert technical assistance
  • Remote diagnostic service
  • Advanced hardware exchange
  • Marketing support
  • Remote training
  • Unlimited Webinars ($250 value per webinar)
  • ViewMyConsult® client portal
  • Your Canfield purchase includes 1 year of complimentary Canfield Care support and training.
  • 1-year limited warranty on Canon rechargeable Lithium-Ion batteries
  • Extended Canfield Care is available
  • On-site training: Additional on-site training by Canfield is available, contact us for pricing and additional information.
