3D. Anywhere.

The VECTRA® H1 handheld imaging system brings clinical-quality 3D imaging to any practice. It delivers precision optics for high-resolution 3D images in an intuitive, lightweight and easy to handle image capture system. Ideal for facial aesthetics, clinical documentation, and more, it's completely self-contained with integrated flash and ranging lights, the VECTRA H1 is ready to go with minimal staff training.

VECTRA® H1

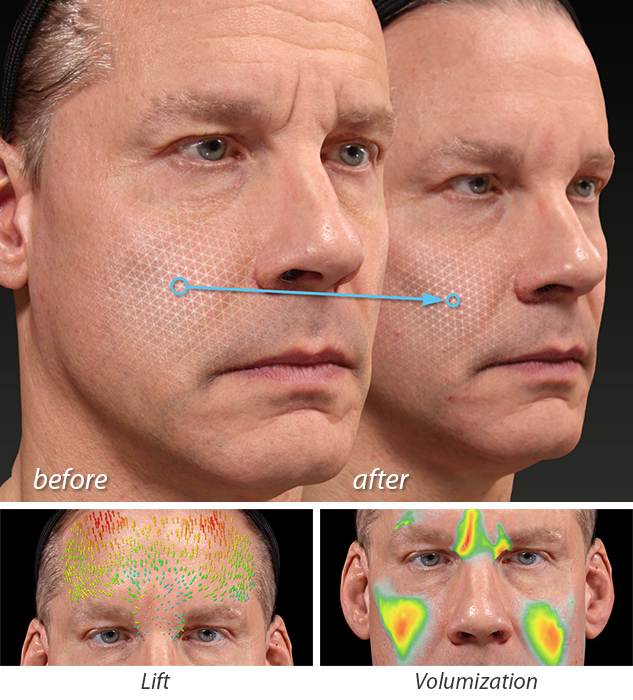

Automated Markerless Tracking

Reveal the changes

Dense image to image correspondence enables fine-scale 3D biomechanical analysis.

A quantitative approach to soft tissue change assessment that characterizes the degree of stretch, compression, lift, and volumization.

  • Encourage future treatments by showing patients their personal improvement results.
  • Confirm patient improvement with detailed evidence of treatment results.
  • Educate yourself and other clinicians through the review of patient outcomes.
H1 Capture

With 3D assessment and simulation tools, easily communicate both surgical and non-surgical procedures on a three-dimensional image of your patient.

Differentiate Your Practice

Increased patient referrals and drive greater media exposure with state-of-the-art assessment tools and realistic 3D results.

Communicate the Possibilities

Use your patient's own image to explore possible outcomes, educate them about their options, explain limitations, and set appropriate expectations.

Close More Complementary Procedures

Show the difference between the likely outcome of a single procedure or by combining multiple procedures.

Increase Patient Satisfaction

Visualize your patient's expectations, arrive at a shared understanding of treatment objectives, and help your patient decide on the best possible treatment plan.

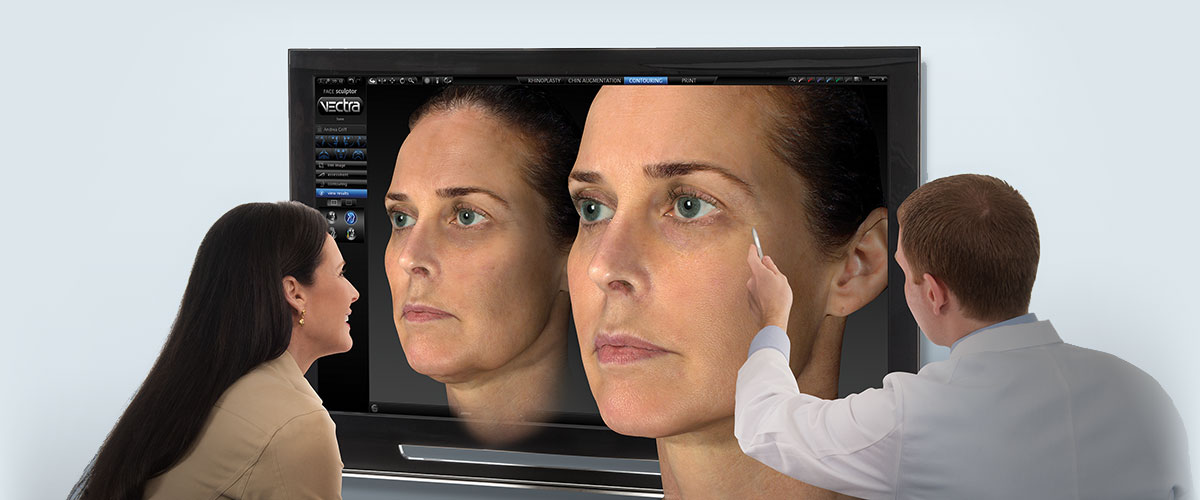

Vectra H1 consultation

Show your patients the exciting possibilities of their anticipated aesthetic procedures using their own image.


Automated Stitching

Automated Stitching

Three facial captures are automatically stitched into one 3D image with VECTRA software.

Evaluate Contours Without Color Distraction

Evaluate Contours Without Color Distraction

Gray mode reveals contours, presenting opportunities for corrective procedures.


Quantify Subsurface Skin Conditions

Quantify Subsurface Skin Conditions

Canfield's proprietary RBX® technology separates the unique color signatures of Red and Brown skin components for unequaled visualization of skin conditions.

Volume Difference

Volume Difference

Automatic volume difference measurement with one click. Visualize the degree of contour change with a color distance map.


Markerless Tracking

Markerless Tracking

Automated Markerless Tracking provides a dynamic assessment of skin surface changes. Skin surfaces are automatically aligned, tracked and mapped.

Automated Measurements

Automated Measurements

Some only possible with 3D technology, help your patients understand their current condition.


Communicate the Complete Plan

Communicate the Complete Plan

Visualize your patient's hopes and expectations. Quickly arrive at a shared understanding of objectives.

Close More Complementary Procedures

Close More Complementary Procedures

Demonstrate the difference between the likely outcome with only one or multiple procedures. With Face Sculptor® you can explore the possibilities and help your patient decide on the best possible treatment plan.


Print the Dream

Print the Dream

When you're finished, click the optional Print button to select what you wish to show on the printed report, including your practice information and selectable 2D views of pre-op and/or simulation.

Canfield Care® Available

Canfield Care® Available

Unlimited technical support, hardware warranty, training webinars, software upgrades and ViewMyConsult® access.


HIPAA Compliance

HIPAA Compliance

Canfield Imaging Systems is making every effort to develop software that integrates easily into a HIPAA-compliant practice and to assist our customers in complying with HIPAA.

VECTRA products and features are developed in collaboration with industry leading doctors.

View the VECTRA Advisory Panel

Tech Specs

Specifications

Capture System
  • 270mm (H) x 165mm (W) x 100mm (D) capture volume (single capture)
  • 0.95 mm geometry resolution (triangle edge length)
  • Stereophotogrammetry technology
  • 2.0 milliseconds capture time
  • Multiple image stitching capability
  • On-board modular, intelligent flash unit
  • Ranging lights for easy patient positioning
  • SD Memory Card
  • (4) Batteries and (2) chargers
  • Soft carrying case
  • Computer (optional)
  • Printer (optional)
Software
  • VECTRA Capture Module
  • VECTRA Analysis Module
  • Mirror® PhotoFile®
  • Mirror® PhotoTools
  • Face Sculptor (optional)

Requirements

System Power
  • Voltage: 100 to 240 Volts AC
  • Frequency: 50/60 Hz
Computer Requirements
  • Operating system:
    • Microsoft Windows 7 Professional or Ultimate, 64 bit
    • Windows 8.1 Professional, 64 bit
    • Windows 10 Professional, 64 bit – Recommended
    • NOT SUPPORTED: Windows Home Edition and Windows VISTA
  • Processor: Dual Core 2.75 GHz or higher (Quad Core recommended)
  • System memory (RAM): 8 GB (16 GB recommended)
  • Minimum 1 GB available disk space for installing application
  • 1 TB available disk space recommended for data
  • Graphics card:
    • 1 GB dedicated memory minimum (2 GB recommended)
    • Dedicated nVidia or AMD cards (nVidia recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • USB Ports: 2 dedicated ports (USB 2.0)
  • Display: 1920 x 1080 minimum, 1920 x 1200 recommended (4K monitors not currently optimized)
  • Microsoft Security Essentials anti-virus software recommended
  • Wired printers (recommended for speed)
Mirror iPad App (used for VECTRA 3D images)
  • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
Server / Network Recommendations (not supplied)
  • Windows Server 2008 R2 SP1 64-bit, Server 2012 64-bit or 2012 R2 64-bit, Server 2016 64-bit
  • Microsoft SQL Server 2008, 2008 R2, 2012 (Express edition is installed by default), 2016
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.
  • Regularly scheduled backups are highly recommended
Notes
  • We do not support using a server class OS as a workstation.
  • WAN Connectivity is NOT supported.

Support

Canfield Support
  • 1-year limited warranty, including support & upgrades
  • Includes advanced replacement, round trip shipping in US
  • Includes software feature improvements and enhancements
  • Canfield Care available

Warranty

VECTRA 3D Imaging System
  • 1-year limited warranty, including support & upgrades
  • Includes advanced replacement, round trip shipping in US
  • Includes software feature improvements and enhancements
  • Canfield Care available
Dell Computer
  • 3-year limited warranty, including on-site, next day service from Dell, in the US

Training

VECTRA Installation & Training
  • Additional on-site training by Canfield is available, contact us for pricing and additional information.
  • Unlimited Webinars are included at no charge during the first year or with Canfield Care ($250 value per webinar)
